FOCUS Atlas 8.7

Description

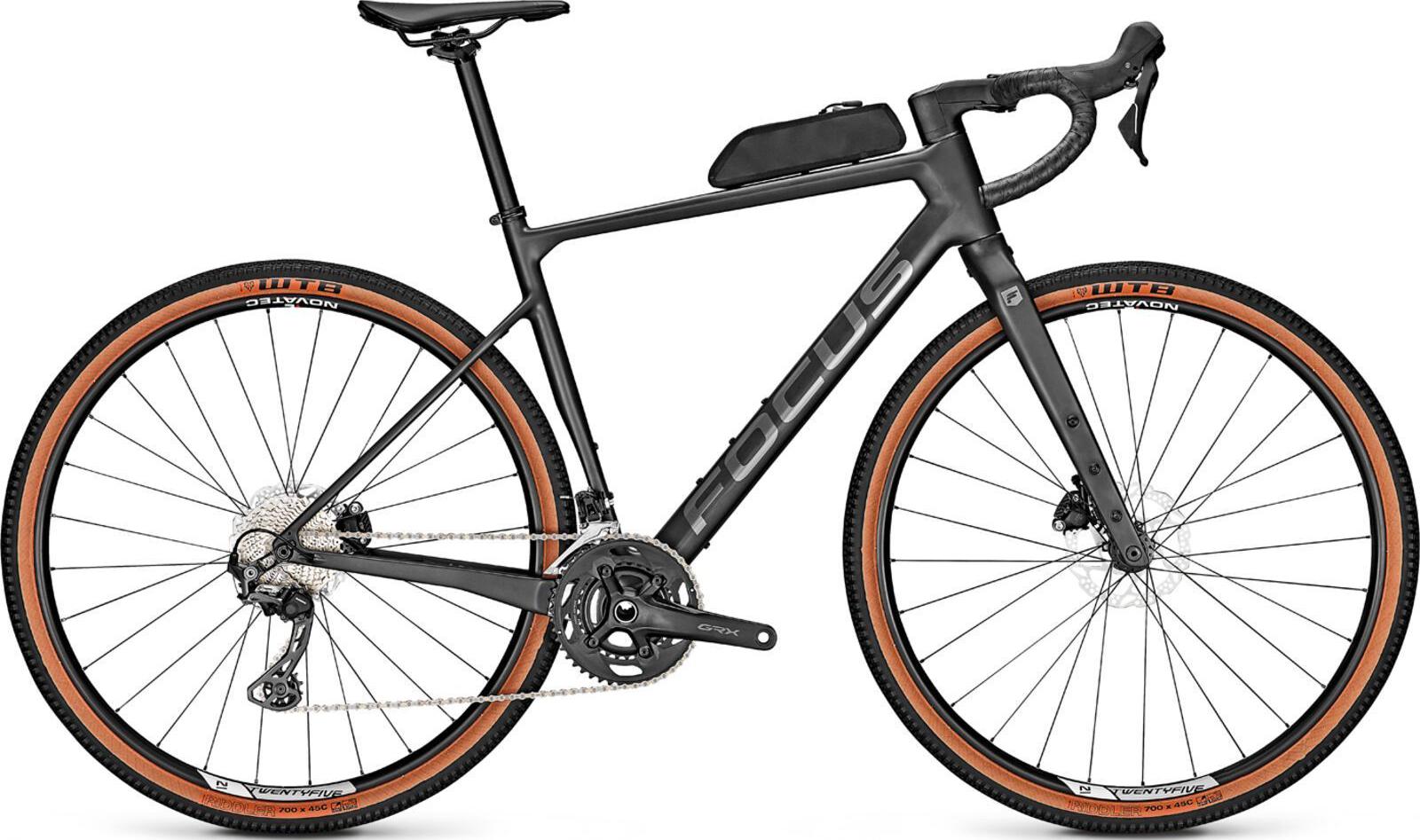

Focus Atlas GRX 2022/2023

Brand: Focus
Model Years: 2022, 2023
Intended Use: Gravel, Bikepacking
Gender: Unisex
Frame Form: Diamond
Braking Type: Hydraulic Disc Brakes
Gear Type: Mechanical
Number of Gears: 22-speed

---

🔹 Overview

Knows no limits — the Focus Atlas offers up to 47 mm tire clearance and all the mounting options needed for serious bikepacking. From harsh weather to tough terrain, steep climbs to long journeys, this lightweight carbon gravel bike delivers control, comfort, and unmatched versatility. The wide flared handlebars and disc brakes enhance safety and handling on all routes.

---

📦 Frame & Fork

• Frame: Carbon, C.I.S. integration, Press Fit BB86, 12×148 mm thru-axle, flat mount (160 mm), internal cable routing
• Fork: Carbon, disc, 12×110 mm thru-axle, flat mount (160 mm), internal brake cable routing, multiple mounting points
• Frame Material: Carbon

---

🛠 Drivetrain & Components

• Groupset: Shimano GRX
• Crankset: Shimano GRX FC-RX600, 46/30T, 11-speed
• Cassette: Shimano 105 R7000, 11-speed, 11-34T
• Front Derailleur: Shimano GRX FD-RX810
• Rear Derailleur: Shimano GRX
• Chain: Shimano CN-HG601, 11-speed
• Bottom Bracket: Shimano Pressfit Road BB86

---

🕹 Controls & Cockpit

• Shifters: Shimano GRX 600
• Brake Levers: Shimano GRX BL-RX600
• Brakes: Shimano GRX ST-RX400 + BR-RX400 (Hydraulic disc)
• Stem: Focus C.I.S. Integrated, 31.8 mm, Aluminium
• Handlebar: Focus JD RA85, 31.8 mm, Drop: 116 mm, Reach: 74 mm, Flare: 10°
• Headset: Acros IS 52/286 – IS52/40, Focus Integrated C.I.S.
• Grips: Focus Bartape SL

---

🛞 Wheels & Tires

• Wheels: Novatec 25 Elite, 25-622, Disc, Center Lock
  • Front: 12×110 mm
  • Rear: 12×148 mm
• Wheel Size: 700C (28 inch)
• Tires: WTB Riddler, 700 x 45C, folding

---

💺 Seating

• Saddle: Prologo Akero
• Seatpost: Aluminium, 27.2 mm, 0 mm set-back.
